Pod LEDs

Pod LEDs

A guide to help you understand what different patterns of LEDs on the Pod mean.

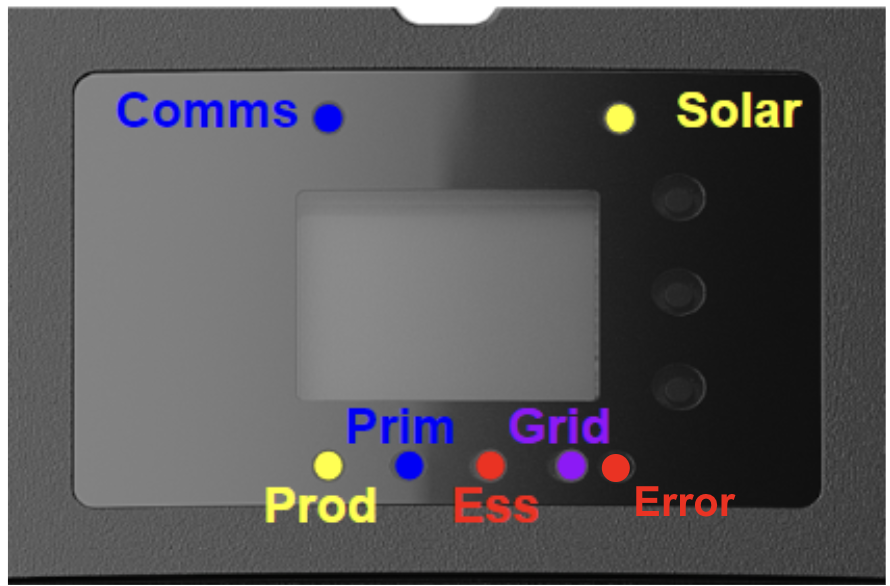

Default Behavior On Startup

  1. For all of the LEDs (except comms and error): the LEDs will all be ON to start, and each LED will turn OFF as soon as power is detected on that port.
  2. Comms: blue LED will start flashing when the Pod turns on. Once connection has been established the LED will turn OFF. Usually this connection process will complete within 1 minute, however depending on the signal strength, it may take several minutes.
  3. Error: In the case an error is detected, the error LED will flash red, until the error is cleared.

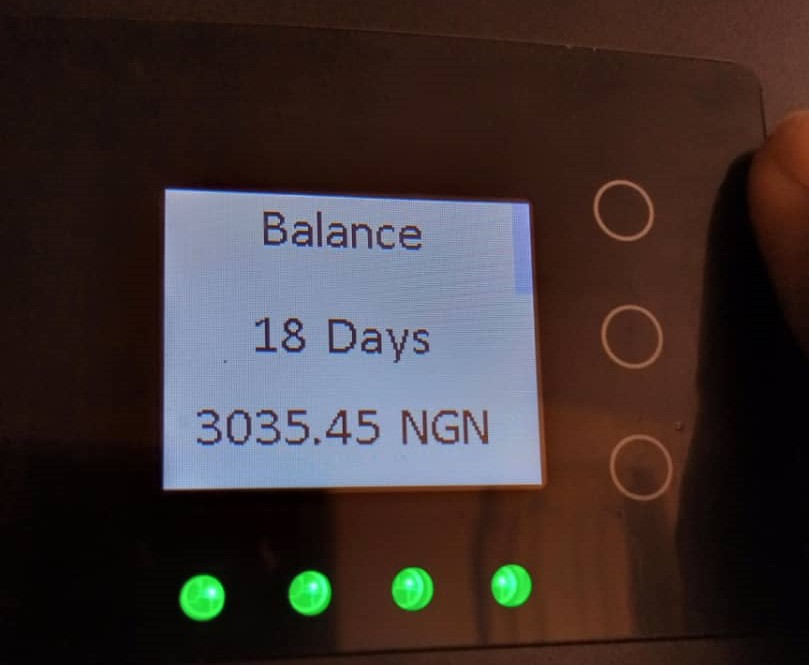

All Green or Red LEDs

This means a "self-test" was accidentally run (which happens with the top button is held down for 3 seconds). After this runs, the LEDs will turn all green or red and the LEDs will NOT clear on their own, so the Pod needs to be reset. Note that there is nothing wrong with how the Pod will run, even if left with these green lights on.
